For Cube 4G M2M Router

Introduction

Cube 4G M2M Router is the device which undertakes the communication of the local wireless sensor network data to the Centaur Cloud Platform. It is an industrial embedded computer equipped with a serial port, GPS, and, 4G/GSM and wifi networking interfaces. The device receives the data generated by the Xbee wireless network and collected by the Xbee gateway through a USB port, stores the data locally, and, forwards the data to the cloud safely when it finds a stable internet connection.

Step 1: Unbox the Device

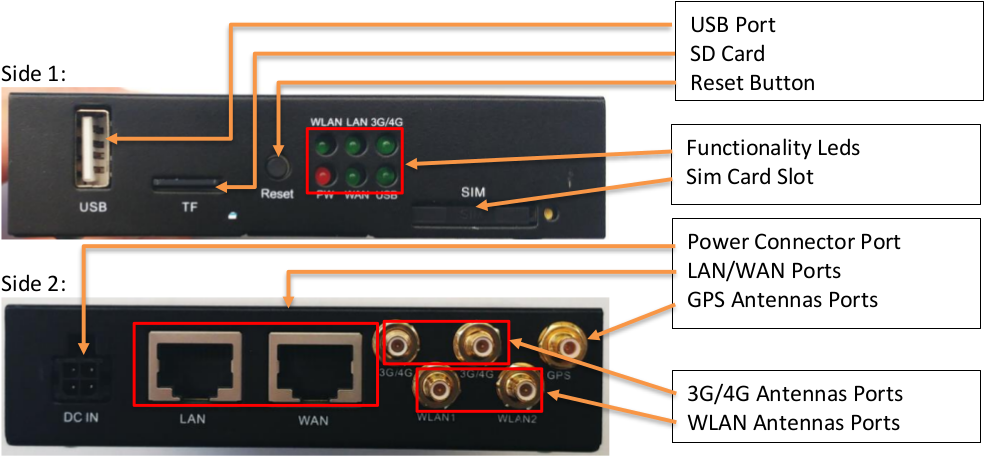

Step 2: Parts and Interfaces

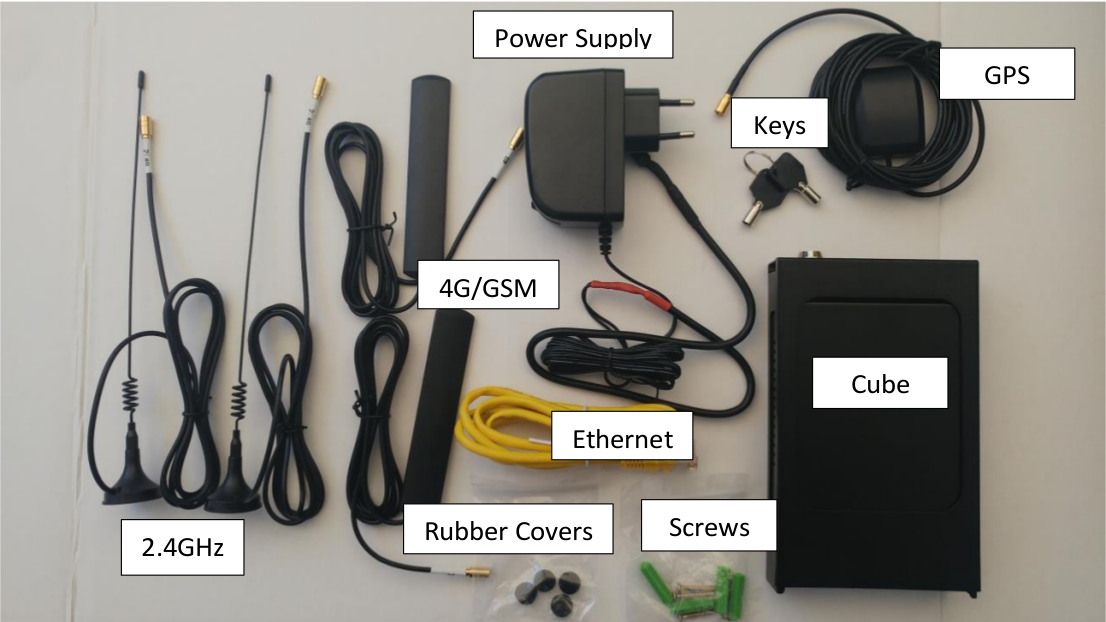

Inside the box you should find:

1. 1x Cube embedded computer in safety housing

2. 2x 2.4GHz antennas

3. 2x 4G antennas

4. 1x GPS antenna

5. 1x Ethernet cable

6. 1x Power supply

7. 1x Bag with rubber covers

8. 1x Bag with screws

9. 1x Pair of safety keys

Step 3: Antennas Connection

The five antennas should be connected as shown in the pictures below:
First the wifi (2.4 GHz) antennas:
​

Next, the 4G (GSM) antennas and the GPS:
​

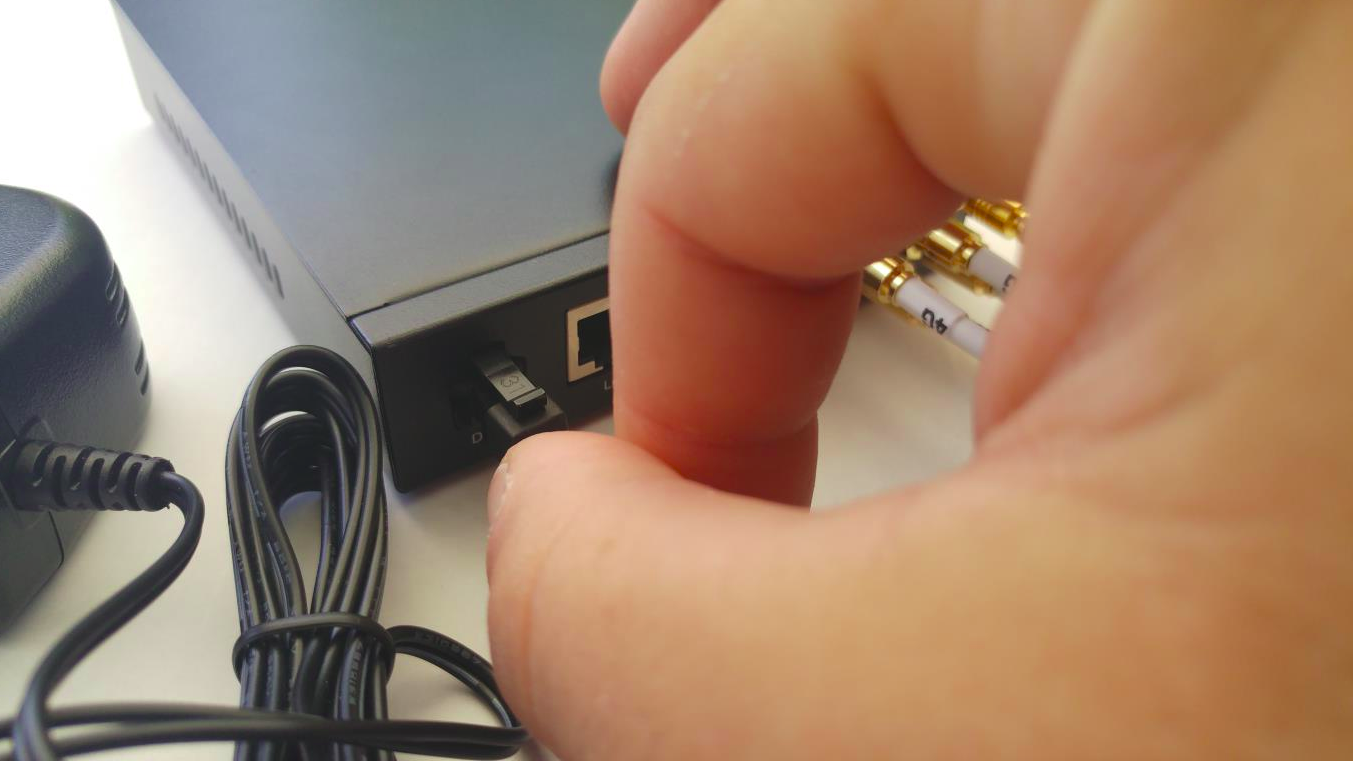

Finally, the power adapter plug:
​

Step 4: XBee Gateway  and Cube 4G Activation

Connect the Xbee Gateway though a USB cable and activate the Cube 4G Gateway by connecting the power adapter on a 110/220V AC source:
​

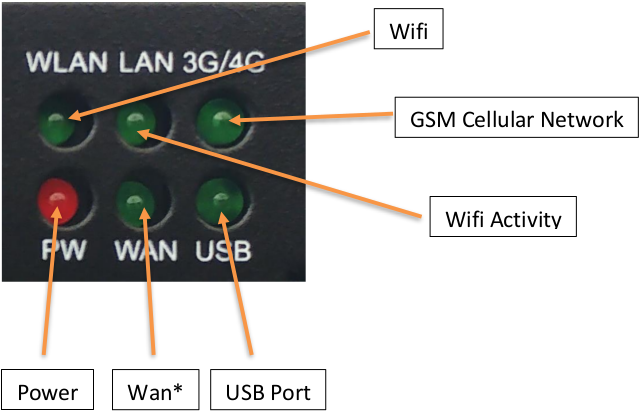

Led indication lights:
​

*Note: In order to provide internet access to the Cube 4G, please use the WAN port instead of LAN
